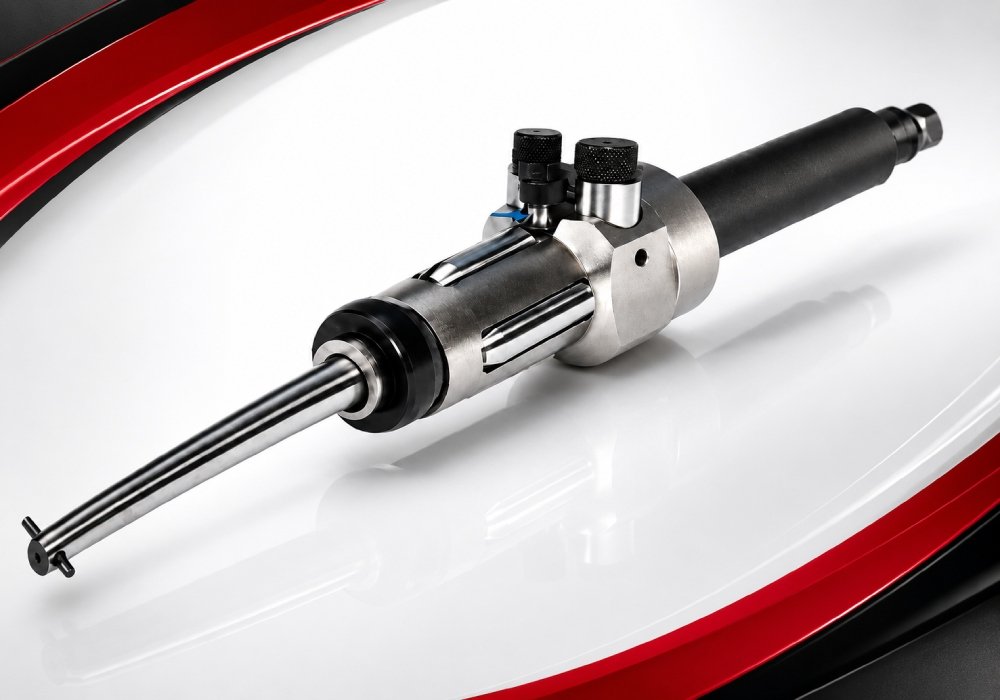

Combination Beading Series Tube Expander
Features of Combination Beading Series Tube Expander
- Combines the tube-expanding and tube-beading operations into one efficient tool.
- Expands and beads the boiler tube simultaneously during a single operation.
- Reduces the time required for boiler tube installation and tube-to-tube-sheet joint preparation.
- Eliminates the need for air hammers commonly used for separate tube-beading operations.
- Helps reduce operator fatigue caused by conventional hammer-based beading methods.
- Reduces excessive noise during tube installation and helps improve the working environment.
- Produces consistent tube expansion and bead formation for reliable boiler tube joints.
- Suitable for boiler manufacturing, boiler maintenance and industrial tube installation applications.
Technical Details
| Tool Type | Combination Expanding and Beading Tool |
|---|---|
| Operation | Simultaneous tube expansion and beading |
| Sizes Available | 2", 2 1/2" and 3" |
| Tube I.D. Range | Approximately 44.0 mm (1.73") to 70.6 mm (2.80") |
| Primary Application | Boiler tube installation and maintenance |
| Processing Method | Single-tool combined operation |
| Beading Method | Integrated mechanical beading rollers |
| Main Advantage | Faster operation with reduced noise and fatigue |
| Industry | Boilers, power plants and industrial heat-transfer equipment |
Expansion and Beading in One Operation
The Combination Beading Series Tube Expander performs tube expansion and bead formation simultaneously. This combined operation saves working time, reduces reliance on air hammers and provides a faster, quieter and more operator-friendly solution for boiler tube installation.
