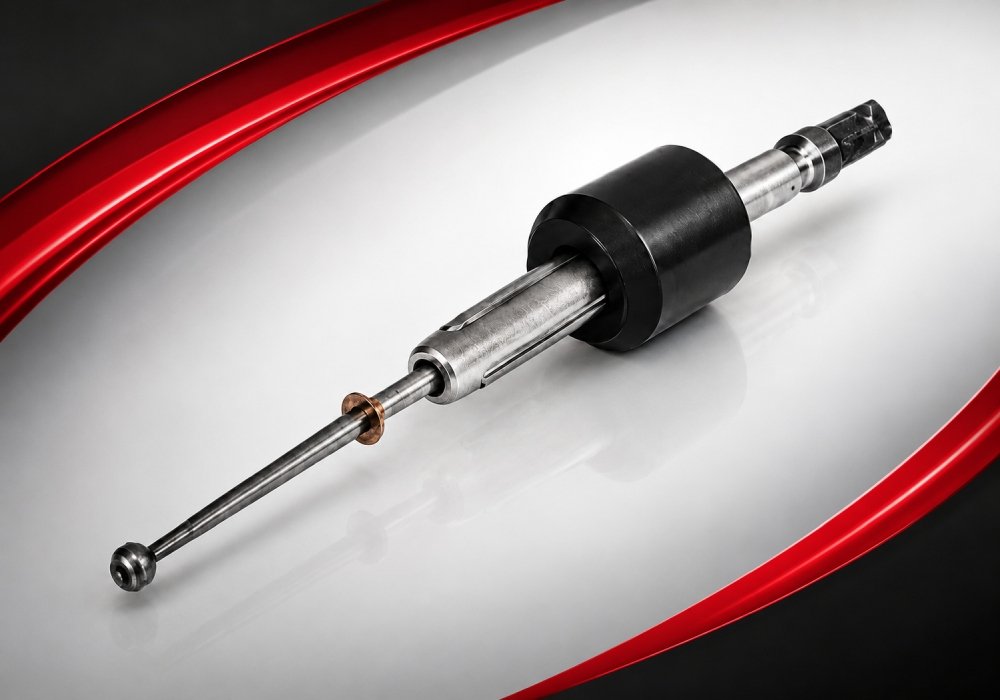

800 Series Tube Expander
Features of 800 Series Tube Expander
- A popular general-purpose tube expander for heat exchangers and condensers.
- Suitable for tubes ranging from 1/2-inch to 1 1/2-inch outside diameter.
- Provides controlled mechanical expansion for dependable tube-to-tube-sheet joints.
- Precision rolls and mandrels provide smooth, consistent and uniform tube expansion.
- Available in different models according to tube diameter, wall gauge and application.
- Compatible with suitable electric, pneumatic and hydraulic tube-expansion drives.
Technical Details
| Tool Type | 800 Series Tube Expander |
|---|---|
| Applications | Heat Exchangers and Condensers |
| Expansion Type | Mechanical Tube Rolling |
| Minimum Tube Size | 1/2" O.D. 14G |
| Maximum Tube Size | 1 1/2" O.D. 20G |
| Sizes Available | 1/2" O.D. 14G to 1 1/2" O.D. 20G |
| Models Available | 797 to 900 |
| Tool Components | Cage, Rolls and Mandrel |
PRIME Quality Tools:
The 800 Series Tube Expander is designed for reliable,
consistent and controlled tube expansion in condensers
and heat exchangers.
