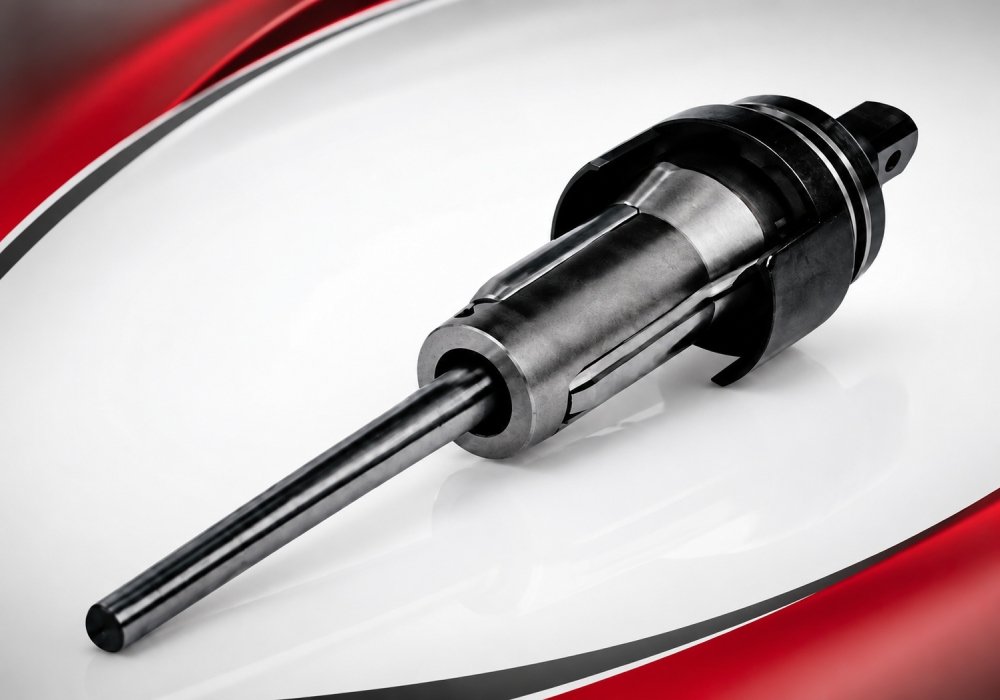

ABF3 Series Tube Expander
Features of ABF3 Series Tube Expander
- High-productivity boiler tube expander designed for applications where expansion and flaring are required.
- Sturdy construction with expansion and flare rolls self-contained inside the cage.
- Time-tested and durable tool design provides consistent performance during repeated rolling operations.
- Overlapping flare rolls help prevent ridging of the boiler tube during the flaring process.
- Integrated bearing reduces frictional buildup for smoother tube-expansion cycles.
- Bearing-supported construction helps increase the useful operating life of the tube expander.
- Provides controlled tube expansion with a uniform and consistent flare at the tube end.
- Suitable for high-production applications where boiler tube-end flaring is required.
Technical Details
| Product Type | Boiler Tube Expander with Bearing |
|---|---|
| Series | ABF3 Series |
| Operation | Tube Expansion with Flaring |
| Sizes Available | 7/8" O.D. 15G to 4 1/2" O.D. 10–12G |
| Models Available | ABF3-3 1/2 to ABF3-102/6 |
| Tube I.D. Range | Approximately 18.5 mm to 107 mm |
| Roll Design | Self-Contained Expansion and Overlapping Flare Rolls |
| Special Feature | Bearing-Supported, Low-Friction Operation |
| Applications | Boiler Tube Installation, Manufacturing, Repair and Maintenance |
High-Productivity Expansion and Flaring
PRIME ABF3 Series Tube Expanders combine overlapping flare rolls with bearing-supported construction. This design reduces friction, provides smoother rolling cycles and produces uniform expansion and flaring while helping extend the useful operating life of the tool.
