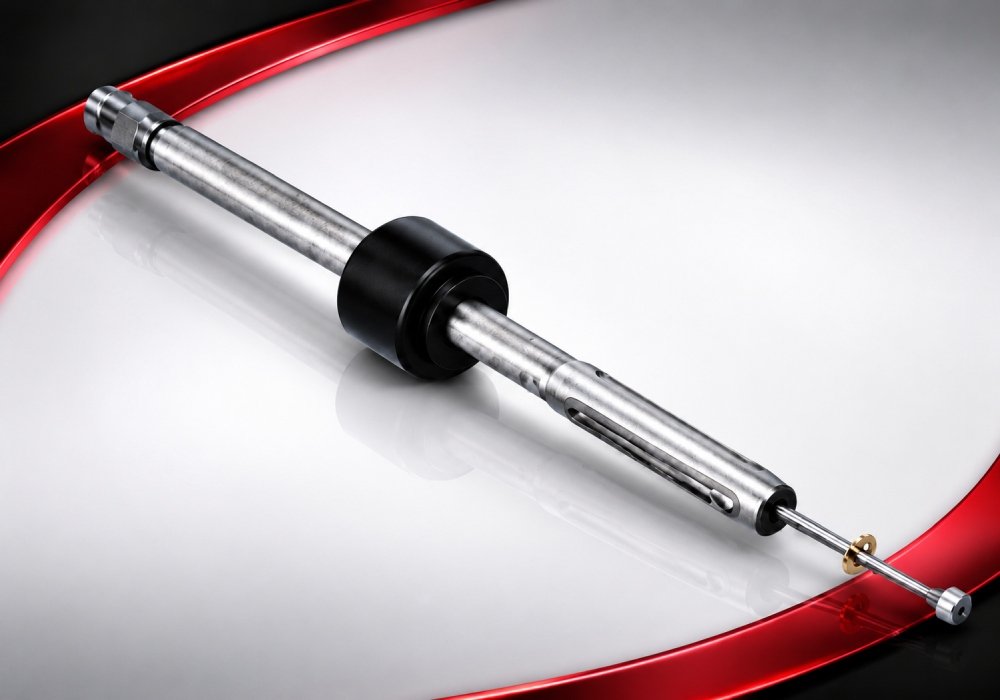

1200 Series Tube Expander
Features of 1200 Series Tube Expander
- Long-reach tube expander designed for heat exchangers and condensers with thick tube sheets.
- Suitable for tubes from 1/2-inch to 1 1/2-inch outside diameter.
- Provides greater reach for expanding tubes installed in deep tube-sheet sections.
- Longer-reach configurations can be supplied according to the required application.
- Precision-manufactured rolls and mandrels provide controlled and uniform expansion.
- Produces dependable tube-to-tube-sheet joints in industrial heat-transfer equipment.
- Available in multiple models according to tube diameter, gauge and required reach.
Technical Details
| Tool Type | 1200 Series Long-Reach Tube Expander |
|---|---|
| Applications | Heat Exchangers and Condensers |
| Tube-Sheet Type | Thick and Deep Tube Sheets |
| Expansion Type | Mechanical Tube Rolling |
| Minimum Tube Size | 1/2" O.D. 14G |
| Maximum Tube Size | 1 1/2" O.D. 20G |
| Sizes Available | 1/2" O.D. 14G to 1 1/2" O.D. 20G |
| Models Available | 1197 to 1300 |
| Reach Options | Standard and Extended Reach |
| Tool Components | Cage, Rolls and Mandrel |
PRIME Quality Tools:
The 1200 Series Long-Reach Tube Expander provides
controlled tube expansion in thick and deep tube sheets
used in heat exchangers and condensers.
