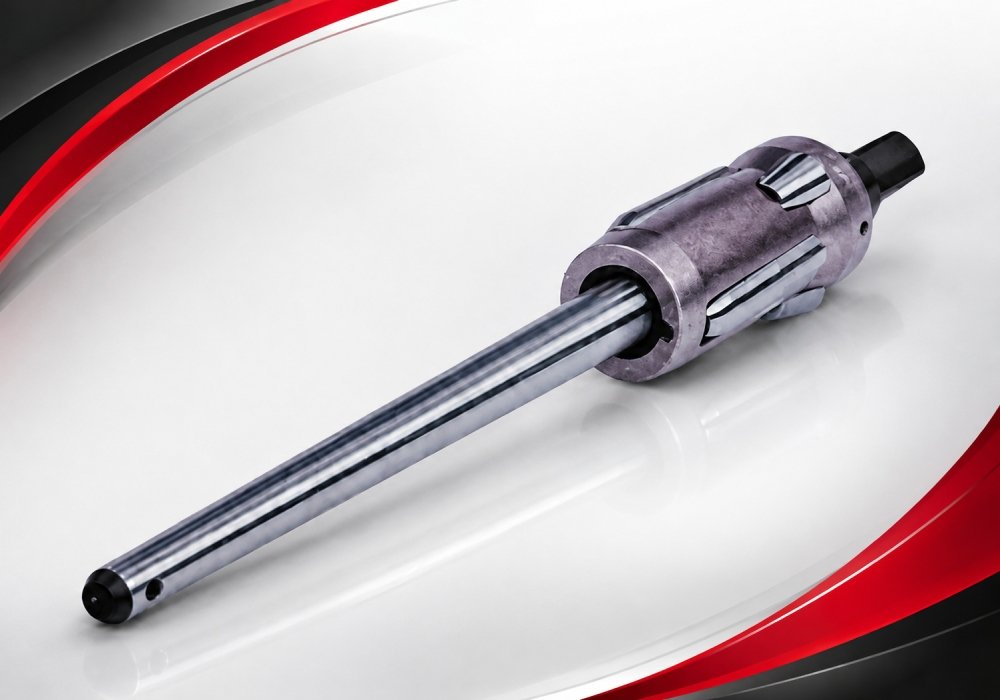

1000 Series Tube Expander
Features of 1000 Series Tube Expander
- Overlapping rolls help prevent ridging of the tube during the expansion process.
- Compact design makes the tool suitable for operation in limited-access working areas.
- Ideal for boiler tube expansion inside water boxes and small-diameter drums.
- Provides controlled and uniform expansion for strong tube-to-tube-sheet joints.
- Precision-manufactured rolls and mandrel support smooth and consistent tube rolling.
- Heavy-duty construction provides reliable performance during boiler installation and maintenance.
- Suitable for different boiler tube outside diameters and wall thicknesses.
- Available in multiple reach lengths for different tube-sheet and boiler drum configurations.
Technical Details
| Product Type | Boiler Tube Expander |
|---|---|
| Series | 1000 Series |
| Expansion Type | Parallel Tube Expansion |
| Sizes Available | 1" O.D. 13 & 14G to 4 1/2" O.D. 7–14G |
| Models Available | P1079/3 to P1394/11 |
| Tube I.D. Range | Approximately 20.5 mm to 110 mm |
| Roll Design | Overlapping Expansion Rolls |
| Applications | Water Boxes, Small-Diameter Boiler Drums, Boiler Repair and Tube Installation |
| Working Area | Limited-Access and Confined Spaces |
Reliable Expansion in Limited-Access Areas
PRIME 1000 Series Tube Expanders are designed for boiler tube expansion in confined working areas such as water boxes and small-diameter drums. The overlapping roll design helps prevent tube ridging and provides controlled, consistent expansion.
